2015 to 2018 Ford Ranger Pickup Truck Service Manual

Covering 2015 2016 2017 2018 year models Ford Ranger Service / Repair / Workshop Manual

Covering 2.2 (Puma) & 3.2 Litre Duratorq & 2.5 Litre Duratec Engines, and suitable for regular cab, double cab and RAP cab trucks in both 4WD and RWD versions.

Factory service manual / factory workshop manual for the 2015 to 2018 model year Ford Ranger. This repair manual covers all topics related to servicing, maintenance, general repairs, advanced repairs and rebuild guidelines for engine, gearbox, differential, suspension, steering, brakes, body panels, interior components and electrical systems, including wiring diagrams, troubleshooting and diagnostic advice. A complete repair manual for the Ford Ranger.

Provided in PDF form, is the 2015-2016 manual as a very large file in English Language, totalling 294MB.

Total of 6,849 pages.

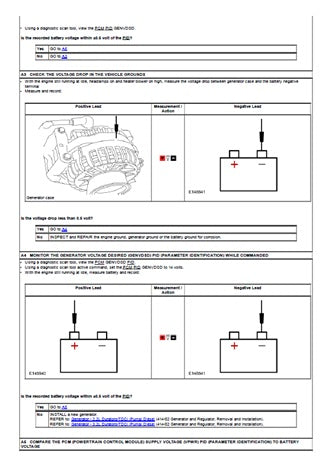

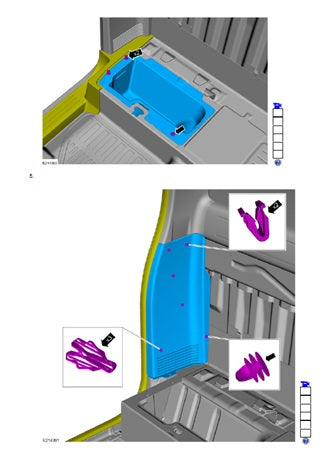

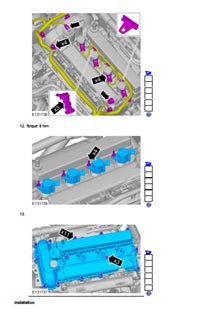

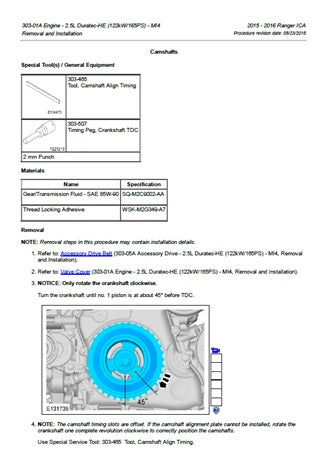

Sample pages are shown in the product pictures, please ensure you are happy with these before purchase as these form part of the product description, orders cannot be refunded once fulfilled.

Features Following Chapters...

100 - General
100 - General Info (Diagnostic Trouble Code Charts, Wire Terminal Inspection, ID codes, Jacking and Lifting, Noise Vibration and Harshness)
200 - Chassis
204-00 Chassis General Info (Ride Height, Suspension Diagnosis, Camber & Caster, Tow Adjust, General Suspension Info)
204-01A Front Suspension - RWD
204-01B Front Suspension - 4WD
204-02 Rear Suspension
204-04A Wheels and Tires
204-04B Tire Pressure Monitoring System (TPMS)
205-01 Driveshaft
205-02 Rear Drive Axle and Differential
205-03 Front Drive Axle and Differential
205-04 Front Drive Halfshafts
206-00 Brake System General Information
206-03 Front Disc Brake
206-04 Rear Disc Brake
206-05 Parking Brake and Actuation
206-06 Hydraulic Brake Actuation
206-07 Power Brake Actuation
206-09 ABS and Stability Control
211-00 Steering System
211-02 Power Steering
211-04 Steering Column
211-05 Steering Wheel and Column Electrical Components
300 - Powertrain
303-00 Engine System General Info
303-01 2.3L EcoBoost
303-03 Engine Cooling 2.3L EcoBoost
303-04A Fuel Charging and Controls
303-04B Fuel Charging and Controls - Turbocharger
303-05 Accessory Drive
303-06 Starting System
303-07 Engine Ignition
303-08 Engine Emission Control
303-12 Intake Air Distribution and Filtering
303-13 Evaporative Emissions
303-14 Electronic Engine Controls
307-01 Automatic Transmission 10 Speed
307-02 Transmission Cooling 10 Speed
307-05 Automatic Transmission External Controls
308-07A Four-Wheel Drive Systems
308-07B Transfer Case
309-00 Exhaust System
310-00 Fuel System General Info
310-01 Fuel Tank and Lines 2.3l EcoBoost
310-02 Acceleration Control
400 - Electrical
413-00 Instrument Panel and Interior Switches Illumination
413-01 Instrumentation Messages Chimes
413-06 Horn
413-09 Warning Chimes
413-13A Parking Aid
413-13B Parking Aid Vehicles with Parking Camera
414-00 Charging System General Info
414-01 Battery, Mounting and Cables
414-02 Generator and Regulator
414-05 Voltage Converter-Inverter
415-00A Information and Entertainment System - AM-FM
417-01 Exterior Lighting
417-02 Interior Lighting
417-04 Daytime Running Lamps (DRL)
418-00 Electrical Distribution
418-01 Module Configuration
419-01A Perimeter Anti-Theft Alarm
419-01B Passive Anti-Theft System (PATS)
419-01C Passive Anti-Theft System (PATS) Keyless Entry

500 - Interior/Exterior Body Panels
501-00 Body System General Info
501-02 Front End Body Panels
501-03 Body Closers
501-04 Pickup Bed and Platform Body
501-05 Interior Trim and Ornamentation
501-08 Exterior Trim and Ornamentation
501-12 Instrument Panel and Console
501-14 Handles Locks Latches Entry
501-16 Wipers and Washers
501-19 Bumpers
